Height dimensions:

• Upper sections of 48”, 51” and 54” high cabinets are equivalent to 15” high wall cabinet; opening height is 12”.
• Upper sections of 57”, 60”and 66” high cabinets are equivalent to 18” high wall cabinet; opening height is 15”.

Blind area:

• Blind area of cabinet is 6” and covered with 1⁄8” thick hardboard. An optional upgrade to replace hardboard with flush finished panel is available.

Modifications:

• Height modification available; minimum 27”, maximum 66”. Height adjustment applied to lower section.

Height dimensions:

• Upper section of 48”, 51” and 54” high cabinets is equivalent to 15” high wall cabinet; opening height is 12”.
• Upper section of 57”, 60” and 66″ high cabinets is equivalent to 18” high wall cabinet; opening height is 15”.

Width dimensions:

• Door width for 24” x 24” x 12” and 27” x 27” x 15” cabinets: 1⁄2” and 11⁄4” overlay = 141⁄2”.

Finished portions:

• 27” x 27” x 15” cabinets include flush finished wood ends.

Style:

• If ordered in arch door style, upper door will be arch, lower door receives coordinating square door style.

Modifications:

• Height modification available; minimum 27”, maximum 66”. Height adjustment applied to lower section.
• Move intermediate rail and floor modification (MIRF) available. Adjustable shelf may be moved to upper section.
• Width, depth, peninsula, shiplap interior back, stile, deluxe end with glass and functional end modifications are not available.

Trays:

• Two lazy susan trays are fixed to floors of cabinet, remaining trays are fixed to adjustable shelves.
• Lazy susan includes wood trays with 1⁄2” thick solid wood sides.
• Additional lazy susan tray with shelf and shelf clips may be ordered.

Style:

• Deluxe panels reflect door style specified on order; see individual door style details and deluxe panel information for styling details.
• If ordered in arch door style, deluxe panel will receive coordinating square door style.

Finished portions:

• Includes flush finished wood ends; deluxe finished ends available.
• A portion of the inside of the hood will be finished.

Modifications:

• Height modification available; minimum 21″, maximum 42″.
• Width and depth modifications not available.

Trim:

• Metal trim kits are available.

Other:

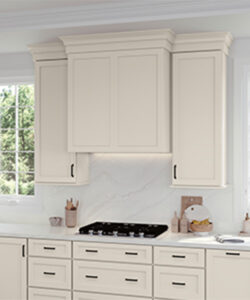

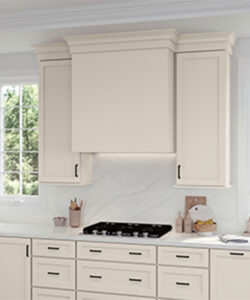

• Hood fronts are removable for ease of use in installation and maintenance of venting equipment.
• Vent-A-Hood® blower units are separate SKUs.

Style:

• Panels reflect door style specified on order; see individual door style details and panel information for styling details.
• If ordered in arch door style, panel will receive coordinating square door style.

Finished portions:

• Includes flush finished wood ends; deluxe finished ends available
• A portion of the inside of the hood will be finished.

Modifications:

• Height modification available; minimum 21″, maximum 42″.
• Width and depth modifications not available.

Trim:

• Metal trim kits are available.

Other:

• Hood fronts are removable for ease of use in installation and maintenance of venting equipment.
• Vent-A-Hood® blower units are separate SKUs

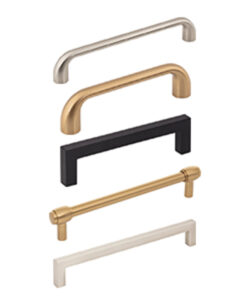

Capture a trend or complete the look with Contemporary and Transitional Pulls ranging from crisp and clean to svelte and elegant in several gorgeous metallic selections.

All three pulls available in two sizes in the following stunning hardware finishes:

• Matte Black
• Satin Bronze
• Satin Nickel
• Polished Chrome

Available in 2 sizes in Matte Black, Satin Bronze, and Satin Nickel

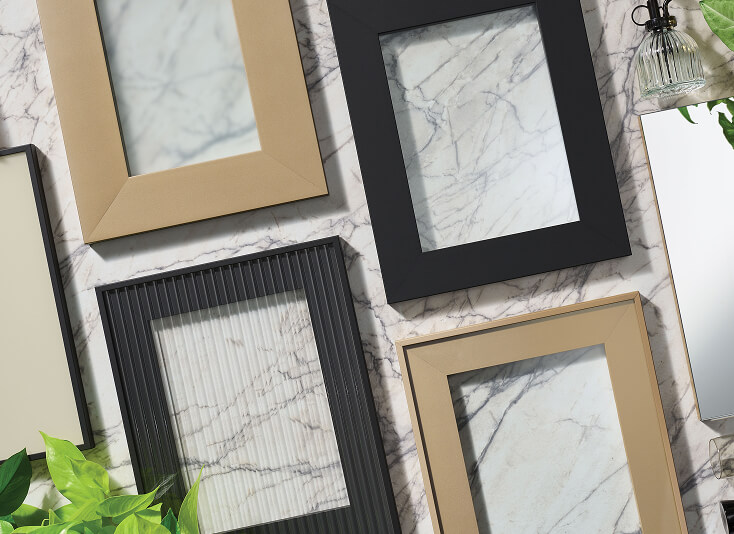

Narrow Glass Door Clips for stiles and rails up to 2-1⁄8” wide.

Clip used for false drawer fronts.

Width specifications:

• Available in 1⁄16” increments
• Minimum width 7-7⁄8”; maximum 31-7⁄8”

Depth specifications:

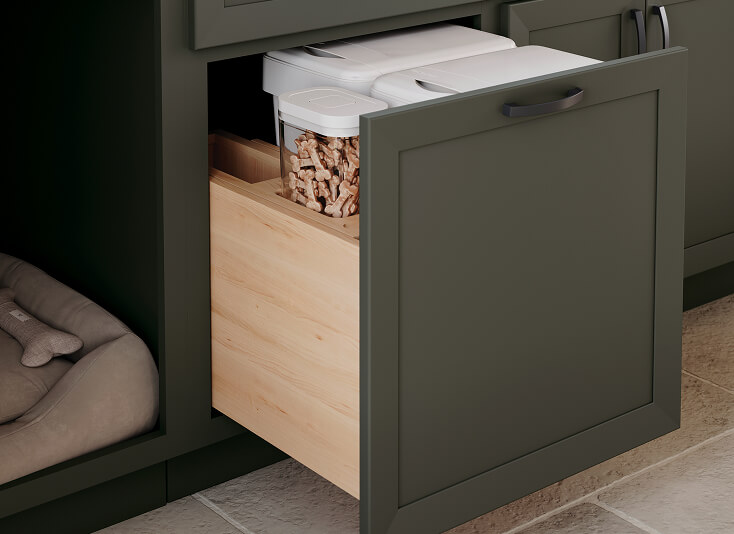

• Specify the actual roll-out tray box depth, not cabinet depth.
• Available depths: 12”, 15”, 18”, 21” and 24”.

Height specifications:

• Available heights: 3-1⁄2” and 6-1⁄2”

Other details:

• Locking clips for Quiet Close guides are included on bottom of roll-out tray. Guides not included.
• Height upgrade (DDSOS) modification is available.
• Roll-Out Tray Plumbing Cut-Out (ROTPM) modification is available.

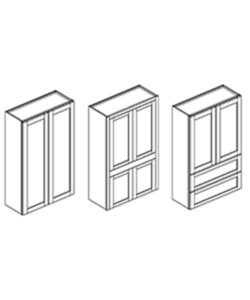

New 66″ height available on:

• Counter Wall Cabinets with Full-Height Doors
• Counter Wall Cabinets with Drawers

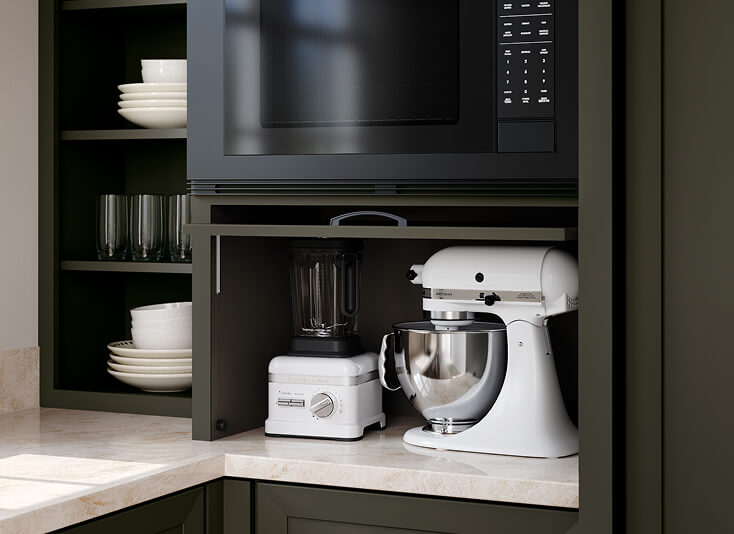

• Counter Wall Cabinets with Garages

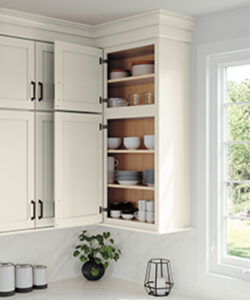

New 66” height available on:

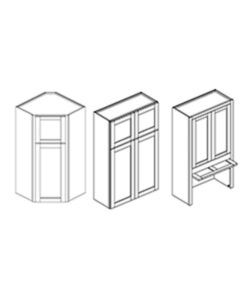

• Wall Stacked Cabinets

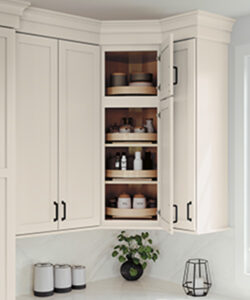

• Diagonal Corner Stacked Wall Cabinets

Modification now available on cabinets sections up to 66″ high, on:

• Stacked Wall Cabinets
• Diagonal Corner Stacked Wall Cabinets

Profile Solid Stock now extended to 120″ lengths (previously only available in 96″).

Modification integrates 3⁄4″ thick plywood panel into the back of the cabinet, for flush finished back treatment. Plywood is veneered in wood species and finished to match the specified door style, species, and finish combination of your order. The depth of the cabinet does not change.

Edge Banding modification is now available on all four sides for the

• Tall Utility Shelf Kits
• Plywood Shelving Material
• Universal Wood Shelves

Modification allows a three-sided vertical notch to be cut into the back of the drawer box or roll-out tray.
